mtWHIMS
The most selective WHIMS. Better recovery at higher grades, with uninterrupted availability.
Better recovery at higher grades ...
Recovering paramagnetic minerals from slurry.

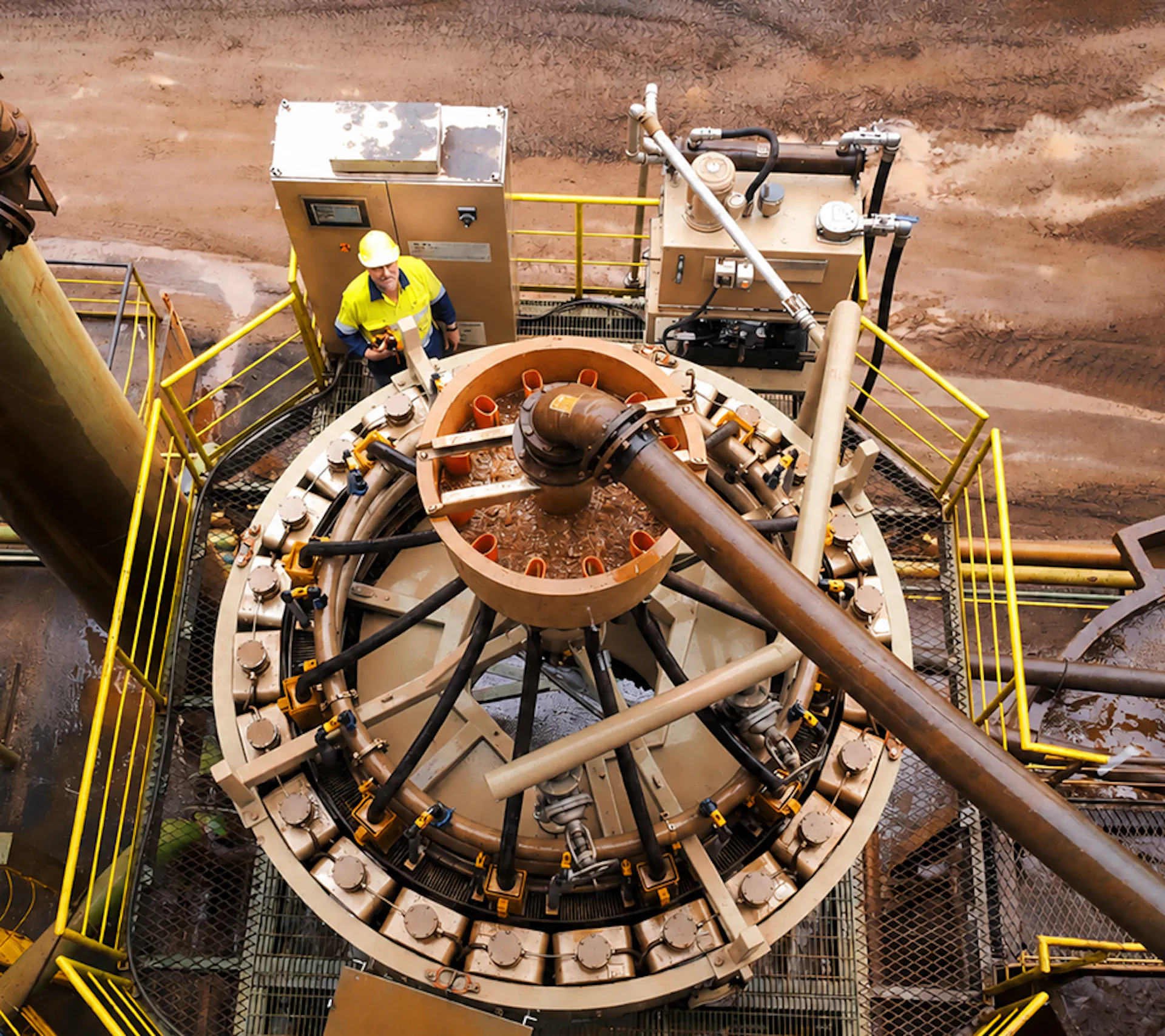

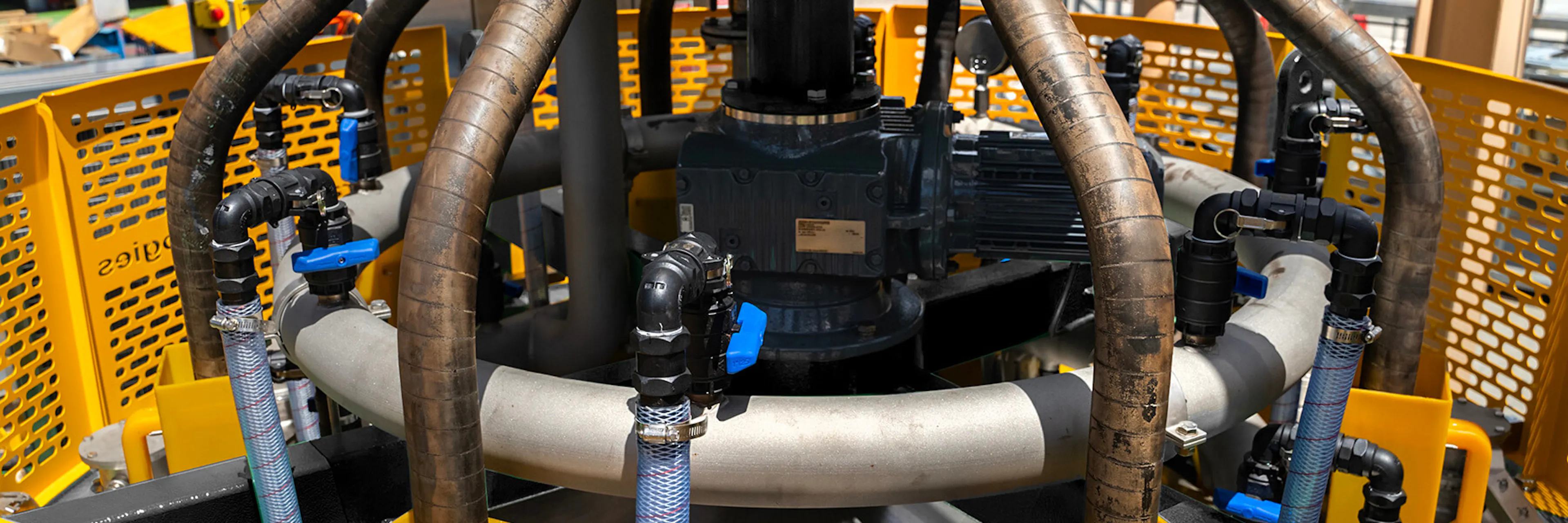

The READING WHIMS is a wet high intensity magnetic separator that sorts on magnetic susceptibility alone, with no regard for density, size or colour. A ring of sixteen independently fed DC electromagnetic coils surrounds a rotating salient plate matrix, generating a field variable up to 13,000 gauss and the sharp field gradients that weakly magnetic particles actually respond to.
The most selective WHIMS. Product grade climbs without trading away the recovery other machines lose.
Inside the WHIMS
A WHIMS takes a slurry and splits it in two using nothing but a magnetic field and water. A ring of sixteen DC electromagnetic coils surrounds a rotating matrix of serrated steel plates. The coils are wired so the poles alternate in pairs, eight north and eight south, which gives the ring eight high field zones and eight dead zones in strict alternation.
Technical Features
Iron ore and tailings recovery
Cleaner stage duty, and scavenging fines from gravity separator tails to recover fine iron that would otherwise be lost.
- Fine iron recovery
- High purity silica sand
- Tailings scavenging
- Chromite
Mineral sands operations
- Ilmenite recovery
Iron Ore Cleaner – Use Case (example)

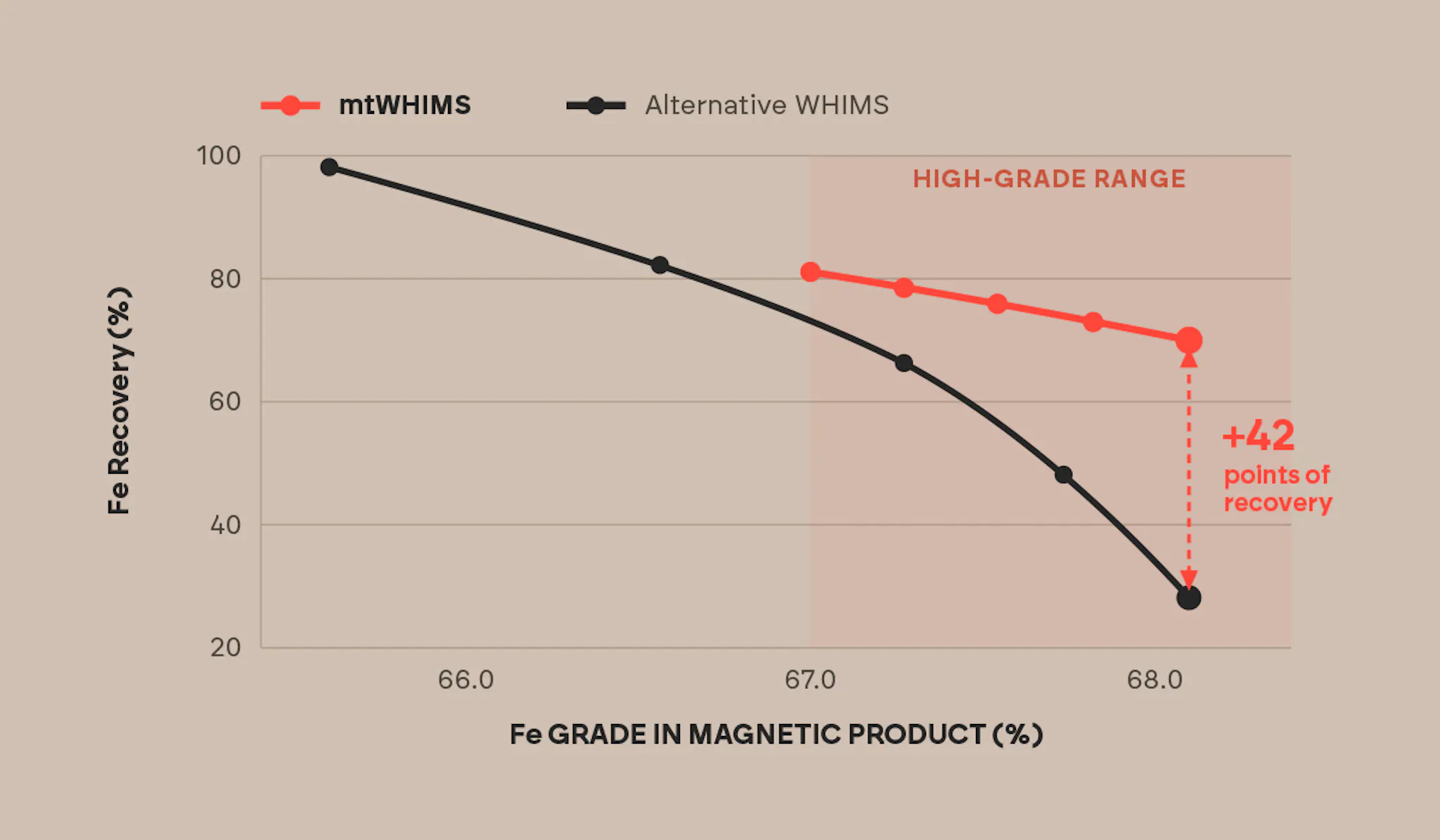

Comparative test work, same deslimed iron ore feed. Pushed toward high product grade, the alternative machine sheds recovery; the mtWHIMS holds it: 70 % Fe recovery at 68 % Fe against 28 %.
- Highly Selective Sharp field gradients sort on susceptibility alone, so product grade climbs without surrendering recovery.
- Uninterrupted Availability Each coil is fed independently, so a single coil failure costs one feed point of eight rather than a quarter of the machine.
- Tuned to Your Ore Rotor width, matrix geometry and operating amperage are set by test work on your own material, not a catalogue selection.
Configurations
| Sizes (Diameter) | Capacity (t/h) |
|---|---|
| 2.1 m | 80 – 90 |
| 2.4 m | 110 – 120 |
| 3.0 m | 170 – 180 |
| 3.65 m | 260 – 270 |
| 4.0 m | 310 – 320 |
Right Size For You?
Mineral Technologies offers mtWHIMS across a range of pole counts and rotor widths to suit capacity and duty. Reach out and inquire in cases where you're application specs are different.
